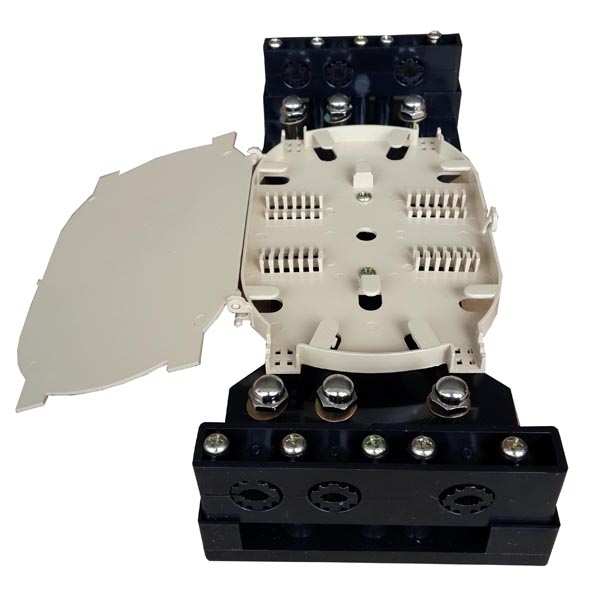

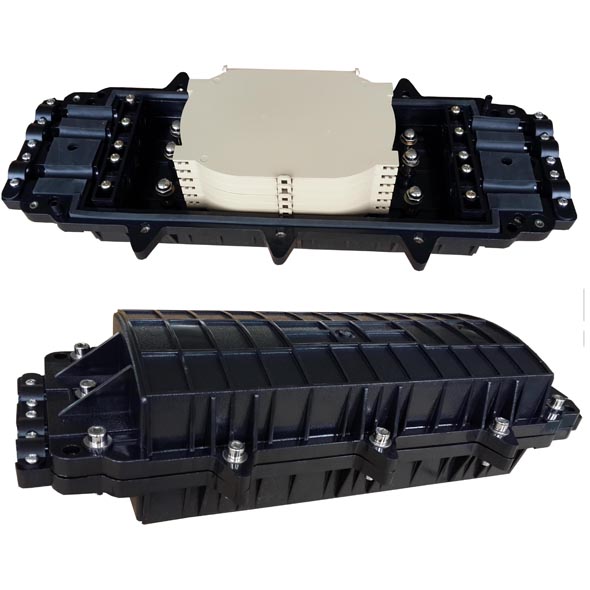

Horizontal Optical Closure small 3in 3out

Fiber Optic Splice Closure, Fiber Optic Closure
Innovative design is an erect and horizontal type with one hinge in one side and open in another side. It is the most reliable FOSC in the world. The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic ABS or PC by numerical control equipment; therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, compressing, and impacting, bending, tensioning, axial tensioning.
It ensures long-term reliability and usage under ambient temperature from -40℃ to +75℃

Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way
Dimension (CM): 46.7*18*13CM
Cables Entry & Exit：3Entry 3Entry
Cable Diameter (mm): Φ7-Φ16
Sealing Structure : Sticky cincture or silicon gum material Sealing
Material: ABS or PC
Maximum capacity: Bunchy 12-144cores ; Ribbon:288 cores
